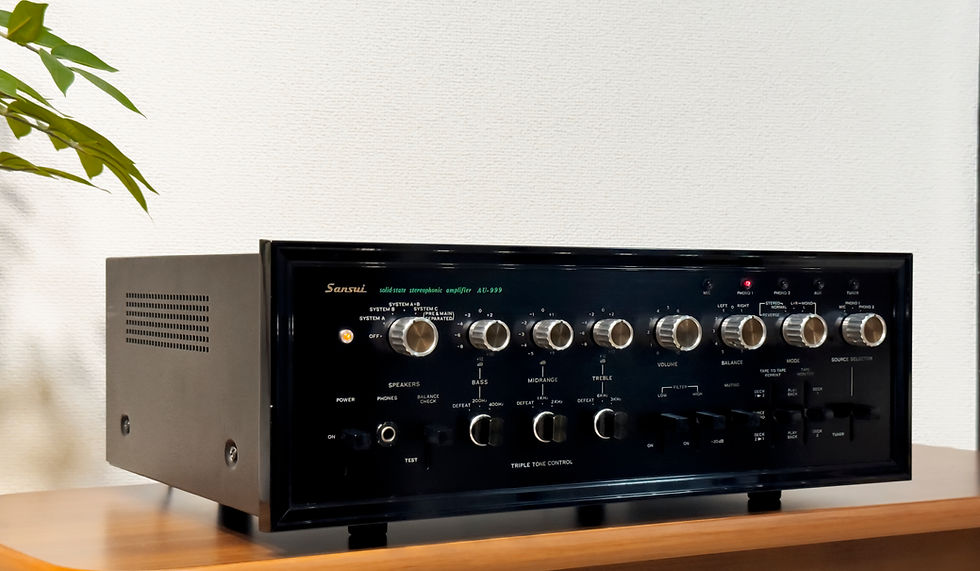

Sansui AU-999
This well preserved Sansui AU-999 (JDM / Japan Domestic Market model at 100V) has gone through Master-grade 'Takumi' Restoration performed here in Japan. Sound signature preserved to original 1970sfactory specifications by veteran Sansui technicians here in Fukuoka.
It was one of Sansui’s flagship integrated amplifier of the early 1970s, a true statement piece in their legendary lineup. Rated at 50 watts per channel into 8Ω (70W into 4Ω), it delivers a powerful yet refined sound with exceptional musicality.
Designed with a fully direct-coupled circuit, precision triple-tone controls (Bass, Mid, Treble with selectable turnover points), and dual phono inputs, the AU-999 was built for serious listening. Its warm, organic midrange and smooth clarity made it a favorite among discerning audiophiles, while its versatile input options and pre/power separation switch ensured it could anchor even the most ambitious HiFi systems.
With its solid build, brushed aluminium faceplate, and classic Sansui layout, the AU-999 embodies the golden era of Japanese HiFi design. Today, it is sought after for both its musical character and its collector’s value—a vintage amplifier that remains every bit as engaging as when it first left the factory floor in Tokyo over 50 years ago.
The AU-999’s preamp features low-noise PNP silicon transistors and an advanced direct-coupled topology for lifelike dynamics and musicality. Triple tone controls enable precise shaping of bass, midrange, and treble. It includes dual phono inputs with adjustable load, two tape loops with Tape-to-Tape dubbing, and a muting/level/tracking circuit for careful listening adjustment.
When Sansui released the AU-999 in 1970, it was intended as a true flagship integrated amplifier—pushing beyond the already respected AU-777 series. Its design shows the blend of engineering precision and audiophile focus that marked Sansui’s golden era.
1. Direct-Coupled Circuitry
The AU-999 used a fully direct-coupled amplifier stage (no output capacitors), which gave it greater speed, extended low-end response, and reduced phase shift compared to capacitor-coupled predecessors.
This was state-of-the-art for its time, putting Sansui on par with high-end Western amplifiers.
2. Triple Tone Control System
- Separate Bass, Midrange, and Treble controls with selectable turnover frequencies.
- Each control works in click-stop increments, allowing precise and repeatable adjustments.
- This made it highly versatile, adaptable to different room acoustics and speaker pairings.
3. Advanced Preamp Section
- Two phono inputs for multiple turntables, plus a dedicated microphone input.
- Built with low-noise PNP silicon transistors in a three-stage differential configuration.
- Wide frequency response: 20Hz – 70kHz in preamp stage, giving vinyl playback remarkable openness.
4. Connectivity & Flexibility
- Multiple line inputs (Tuner, Aux, Tape) with tape-to-tape dubbing capability.
- Preamp / Power amp separation switch, allowing the AU-999 to act as either a dedicated preamp or power amp.
- Three speaker outputs (A, B, C) selectable via front panel.
- Front-panel headphone jack for private listening.
5. Build & Aesthetics
- Classic brushed aluminium faceplate with Sansui’s distinctive early-70s layout: symmetrical knobs, toggle switches, and large volume/balance controls.
- Solid steel chassis with careful internal layout to minimize noise and crosstalk.
- Weight: approx. 17.5 kg, giving it the feel of a serious, no-compromise amplifier.
6. Additional Features
- Muting switch to reduce signal instantly without altering volume.
- High/Low filters to tame unwanted noise or rumble from records.
- Balance check switch to quickly test channel output.
- Click-stop attenuator volume control, ensuring precision adjustment at all levels.
Power Amplifier Section:
- Continuous output: 70 W + 70 W into 4 Ω; 50 W + 50 W into 8 Ω.
- Music power (IHF standard): 180 W (4 Ω), 140 W (8 Ω).
- THD: 0.4%; Cross-modulation distortion: 0.4%.
- IHF power bandwidth: 10 Hz–30 kHz; Frequency response:
- 5 Hz–100 kHz.
- Stereo separation: 50 dB.
- Hum & noise: 100 dB.
- Input sensitivity/impedance: 1 V / 40 kΩ.
- Load impedance: 4 Ω–16 Ω.
- Damping factor: 45 (8 Ω).
Preamplifier Section:
- Rated output: 1 V.
- THD: 0.1%.
- Frequency response: 15 Hz–70 kHz.
- Hum & noise (IHF): Phono1/2: 80 dB; Mic: 80 dB;
- Tuner/Aux: 85 dB.
- Input sensitivities: Phono 1 & 2: 2 mV; Mic: 3 mV; Tuner/Aux/Tape Monitor (Pin/DIN): 200 mV.
- Tape record outputs: Pin – 200 mV; DIN – 30 mV.
Tone Control
- Adjustment ranges: Bass: +12 dB to –8 dB (20 Hz);
- Midrange: ±5 dB (1 kHz / 2 kHz); Treble: +12 dB to –8 dB (20 kHz).
- Selectable turnover frequencies: Bass: Defeat, 200 Hz, 400 Hz
- Midrange: Defeat, 1 kHz, 2 kHz
- Treble: Defeat, 6 kHz, 3 kHz
- Click-step precision: 2 dB increments for bass/treble, 1 dB for midrange.
Filters & Muting
- Low filter: –20 dB at 20 Hz
- High filter: –18 dB at 20 kHz
- Muting: –20 dB switch.
Physical
- Power consumption: 370 W.
- Dimensions: 461.5 × 155 × 316 mm.
- Weight: 17.5 kg.
What HiFi Engine Users Say
- Described as “refined, a lot of relief, very full-bodied sound with crazy dynamics”—suggesting a rich and dynamic listening experience.
- Another comment lauds its detail and realism: “very detailed & clear, this sound like real instruments, in my opinion a real masterpiece.”.
- One longtime owner (used since 1981) recalls it as an audio “workhorse” that “never once did me wrong” and “always sounded good.”.
- A musician notes its emotional intensity: it brings a “smoky edge” to jazz and classical music, imparting memorable and vivid listening sessions.
This vintage Sansui AU-999 has undergone a meticulous, master craftsman-level restoration, with a complete professional overhaul both inside and out. Unlike the common modifications often cited in audio forums—such as removing the protection circuit—our restoration focused on thorough cleaning and replacement of all aging components, including dirty switches, capacitors, and transistors, preserving the original integrity of the unit.
Since its return, the amplifier has been rigorously tested over a two-week period at Vintage Japan HiFi. Thanks to the painstaking restoration, it now delivers a full-bodied, refined sound signature characterized by rich dynamic range and realistic, well-controlled bass response.
Condition Overview:
- Cosmetic Condition: 9.5/10 — Mint condition, representing one of the finest examples we have encountered. The front, back, sides, and top panels are exceptionally clean, free from any visible scratches or blemishes.
- Performance: 9.5/10 — Operating flawlessly at peak specifications. The amplifier’s standout qualities are its exceptional clarity, superb musicality, and precise, immersive imaging.
Note:
Our overhaul service focuses on preserving the original sonic character of the amplifier. We only replace non-functioning electronic parts, ensuring each piece remains true to its factory specifications. Unlike the common practice in many US HiFi workshops, where all capacitors, transistors, and other components are replaced, our ex-Sansui engineers and technicians advise against this, as it changes the amplifier’s authentic sound profile. We honour this approach to maintenance and restoration. However, if you’re looking for more extensive "recapping," feel free to reach out by email for a personalized service quote.
All control knobs and switches have been professionally cleaned and lubricated. However, scratchy noise cannot always be completely eliminated and may reappear over time. This is an unavoidable characteristic of vintage Hi-Fi equipment due to age and component wear. It should not be considered a defect, but rather a natural sign of the unit’s history and originality.
Please refer to our disclaimer notes for further details.
If this occurs, gently rotate the relevant control knobs (volume or balance) back and forth several times before use. In many cases, this will significantly reduce or temporarily eliminate the noise.
Please visit our youtube channel: VINTAGEJAPANHIFI
You’ll find audio tests and demos from our carefully curated collection of vintage Japanese HiFi.
Enjoy the sound, and don’t forget to subscribe to stay updated with our latest uploads!
For any vintage audio hifi equipment:
Please be aware that, given this vintage hifi equipment's age, certain switches and original parts are no longer in production. While we’ve thoroughly cleaned and lubricated any “gari gari” scratchy controls (as they’re called in Japan), it’s simply not possible to eliminate this characteristic entirely since volume knobs and switches cannot be disassembled.
We recommend regular servicing every 2 to 3 years, depending on the equipment, to keep this vintage hifi in peak condition. This advice applies to all vintage equipment—be cautious of sellers who claim "brand-new condition" or “better than original.”
Minor scratchy sounds in control knobs are typical for vintage gear and should not be seen as a defect but rather a natural sign of its history since it does not affect the actual performance or introduce noise into the audio signal source unless being operated.
If this occurs, gently rotate the relevant control knobs (volume, or balance) back and forth several times before use. In many cases, this will significantly reduce or temporarily eliminate the noise.
For optimal sound quality, we advise pairing this amplifier with high sensitivity speakers (88-92 db). If you need guidance on amplifier matching, feel free to reach out for assistance. If you need guidance on amplifier matching, feel free to reach out for assistance.
